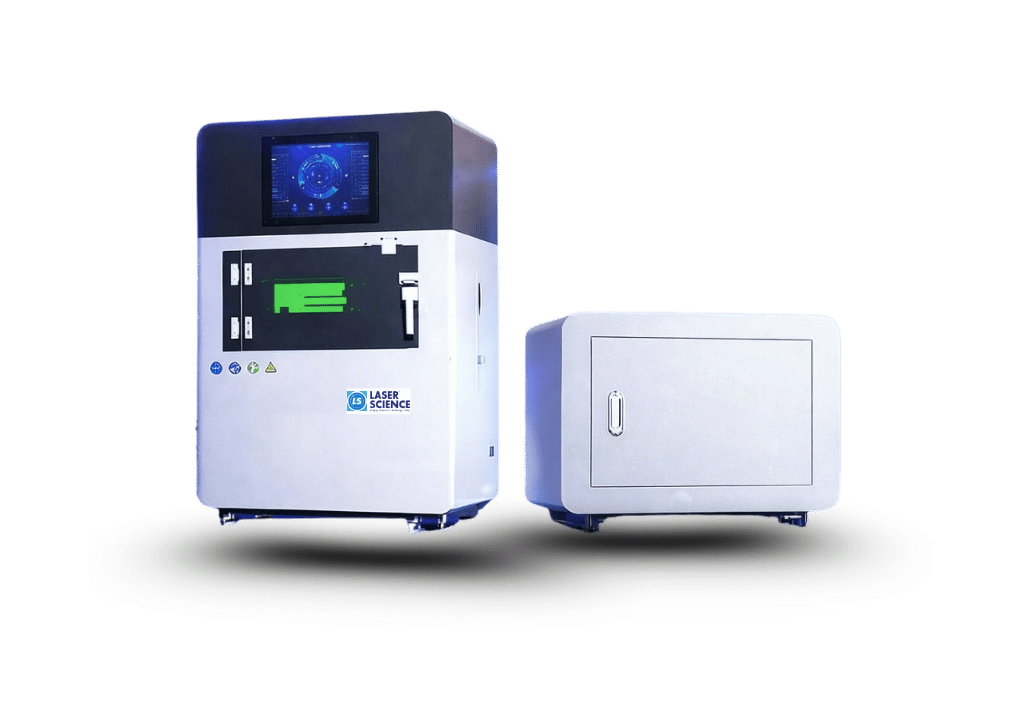

The Laser SLM Metal 3D Printing System is a high-precision additive manufacturing solution designed for medical and defence applications. Powered by a stable fiber laser, advanced scanning optics, and a controlled inert gas environment; it enables accurate, repeatable production of complex metal components. Right from patient-specific medical implants to mission-critical defence parts, solutions with superior mechanical strength and surface quality.
| Parameter | Specification |
| Optical Character | |
| Laser Power | 300 W / 500W |
| Layer Thickness | 20 µm – 60 µm |
| Data Format | STL file |
| Complementary Software | TH-3D Print |
| Applicable Material | Titanium alloy, Cobalt-Chromium alloy, Stainless steel |
| Scanning Speed | 7 m/s |
|
Print size (L x W x H) |
120 x 120 x 100 mm |
| 153 x 153 x 120 mm (Optional) | |
| 286 x 286 x 380 mm (Optional) | |
| Protective Gas | Nitrogen / Argon |
| Forming Cylinder Size | Ø 100 mm × 80 mm (height) |
| Mechanical Character | |
| Main Physical Size (L x W x H) | 550 mm × 550 mm × 800 mm |
| Filtration Physical Size (L x W x H) | 550 mm × 550 mm × 650 mm |
| Weight | 150 kg |
| Cooling Method | Air Cooling |
| Electronic Character | |
| Power Supply | AC 220 V |
*Due to Laser Science Services’ commitment to continuous product improvement, specifications and drawings are subject to change without notice.
TriForm 300 - Laser SLM 3D Metal Printing System (pdf / English)
