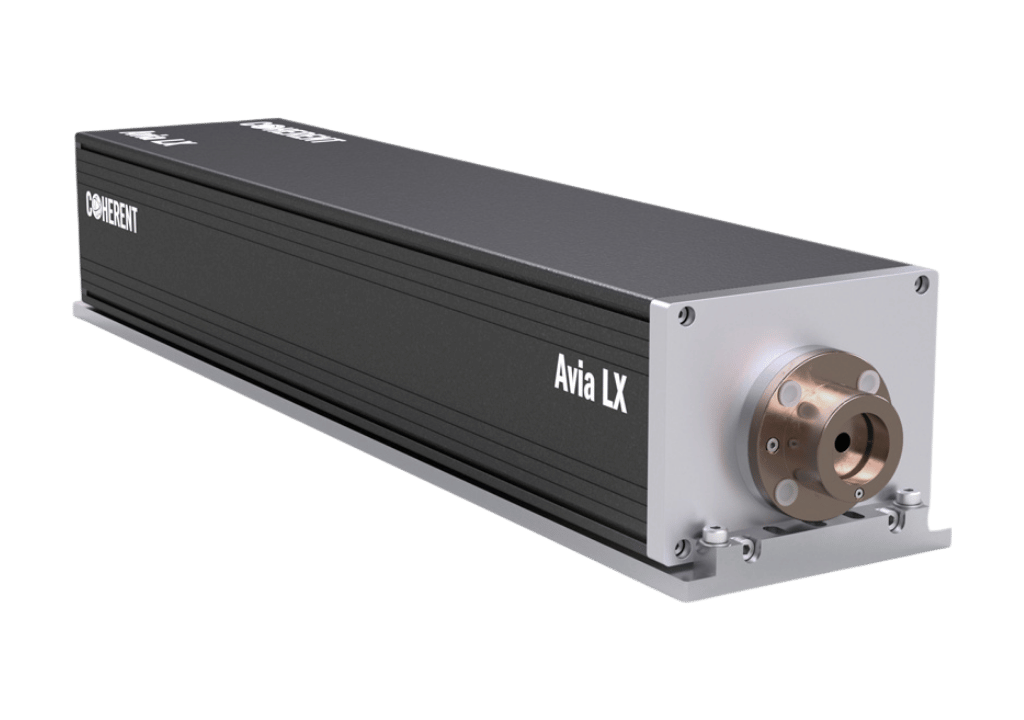

The AVIA LX laser stands out in the realm of precision materials processing. It delivers high pulse energy and fast repetition, all in a compact, easy-to-integrate package. Perfect for semi-fab, advanced packaging, and solar manufacturing, it pushes the boundaries of what a high-power laser can do. Reliability is built-in—designed to perform consistently over years of demanding use. When precision meets power, AVIA LX is the tool that gets the job done efficiently and cleanly.
AVIA LX is engineered for high-stakes applications that demand rapid, precise material processing. It features:
Whether drilling PCB/SIP, cutting, trenching, or processing flexible materials like LCP or LTCC, AVIA LX minimizes heat-affected zones. It reduces or eliminates the need for post-cleaning, saving time and boosting throughput. This laser combines power, simplicity, and durability—delivering results that keep production moving smoothly.
Select from three different output powers, each of which can operate over a range of peak powers and repetition rates to allow optimization for specific materials.
| Model | Beam Diameter (mm) | Output Power (W) | Pulse Energy (μJ) | Repetition Rate (kHz) |
| AVIA LX 532-40-40 | 3 | >40 at 40kHz | 1mJ | Single-shot – 300 |
| AVIA LX 355-10-50 | 3 | >10 at 50 kHz | ≤200 | Single-shot – 150 |
| AVIA LX 355-20-50 | 1.5 | >20 at 50 kHz | ≤400 | Single-shot – 300 |
| 3 | ||||
| AVIA LX 355-20-100 | 1.5 | >20 at 100 kHz | ≤200 | Single-shot – 300 |
| 3 | ||||
| AVIA LX 355-20-40 HE | 1.5 | >20 at 40 kHz | ≤500 | Single-shot – 100 |
| 3 | ||||
| AVIA LX 355-30-60 HE | 3 | >30 at 60 kHz | ≤500 | Single-shot – 300 |
AVIA LX - Solid-State Q-Switched Second and Third Harmonic Lasers Datasheet (pdf / English)
