SAPPHIRE

Sapphire CW lasers set the standard for high-performance laser sources in demanding scientific and industrial environments. They deliver up to 500 mW of low-noise, stable output across nine visible wavelengths. Built for reliability, these lasers have proven their worth with over 50,000 units in the field. Their fiber-coupled options make integration straightforward, whether into complex microscopes or OEM systems. With advanced OPSL technology, they combine high efficiency with low power consumption. For researchers and manufacturers alike, Sapphire lasers are the go-to solution for precision, stability, and robust performance across a wide range of applications.

Contact a Product Expert

Coherent | SAPPHIRE

Designed for precision and dependability, Sapphire CW lasers bring a suite of features tailored for advanced applications:

Industry-Leading Beam Quality : Ensures tight focus and minimal beam divergence, critical for high-resolution microscopy and spectroscopy.
Proven Track Record : Over 50,000 units installed worldwide—trusted by OEMs and research labs alike.
Multiple Wavelengths : Nine visible options to match your specific excitation needs.
Fiber-Coupled Flexibility : Simplifies integration into instruments, microscopes, and OEM platforms.
OPSL Technology : Delivers high efficiency, low power consumption, and consistent performance.
Low Noise Output : Maintains signal integrity in sensitive applications like DNA sequencing, Raman spectroscopy, and interferometry.
Robust and Reliable : Built to withstand demanding environments while maintaining stability over time.

Sapphire CW lasers are the industry’s top choice when quality, reliability, and ease of integration matter. Whether powering high-throughput screening, metrology, or cutting-edge research, they set the bar for performance and dependability.

Sapphire – Key Advantages :

Choose from 20 to 500 mW at nine wavelengths with free-space or fiber-coupled output to simplify integration. Narrowline operation for Raman and interferometry.

Product Specifications :

Sapphire Model	Key Features	Available Wavelengths (nm)

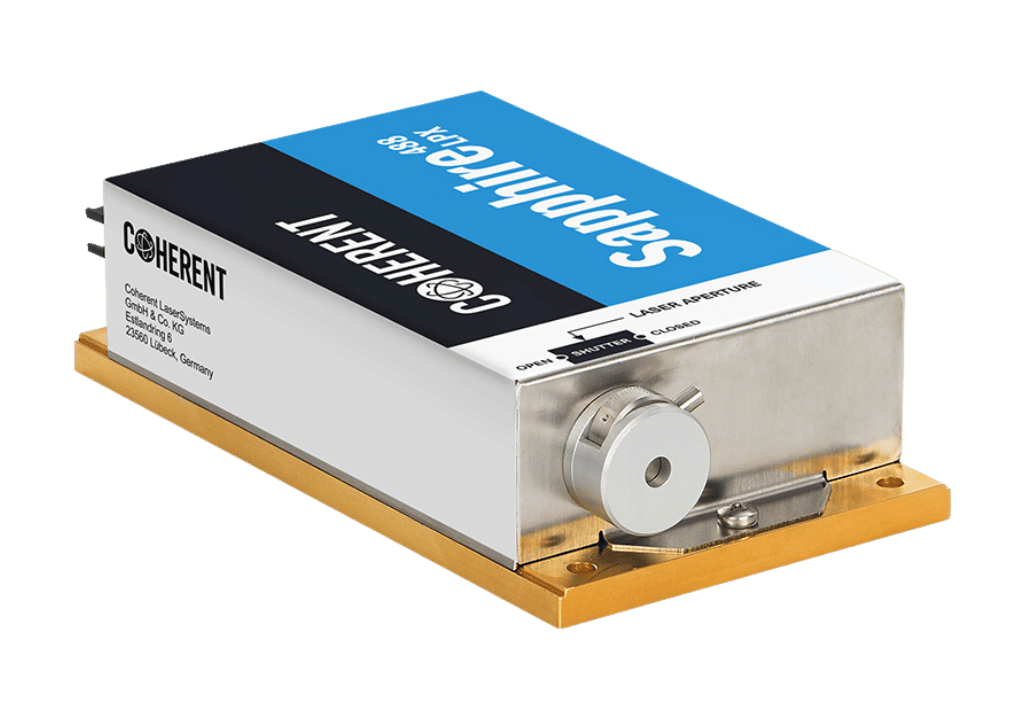

Sapphire LP/LPX	Up to 500 mW power / modulation	458, 488, 514, 532, 552, 561, 568 588, 594

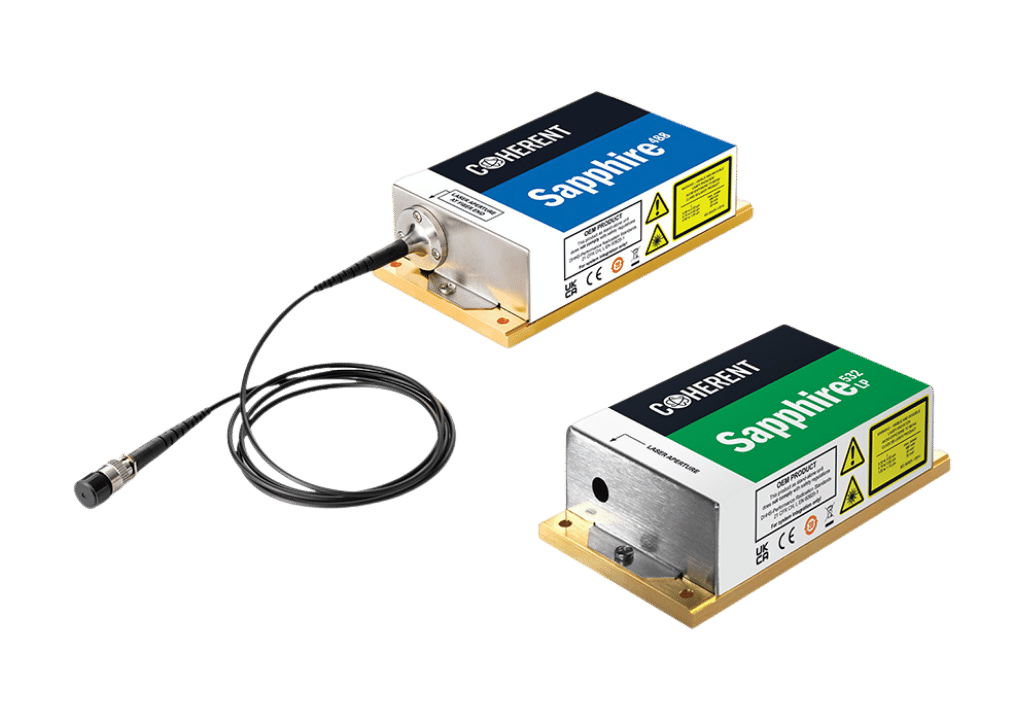

Sapphire FP	Fiber-pigtailed output	458, 488, 514, 532, 552, 561, 568 588, 594

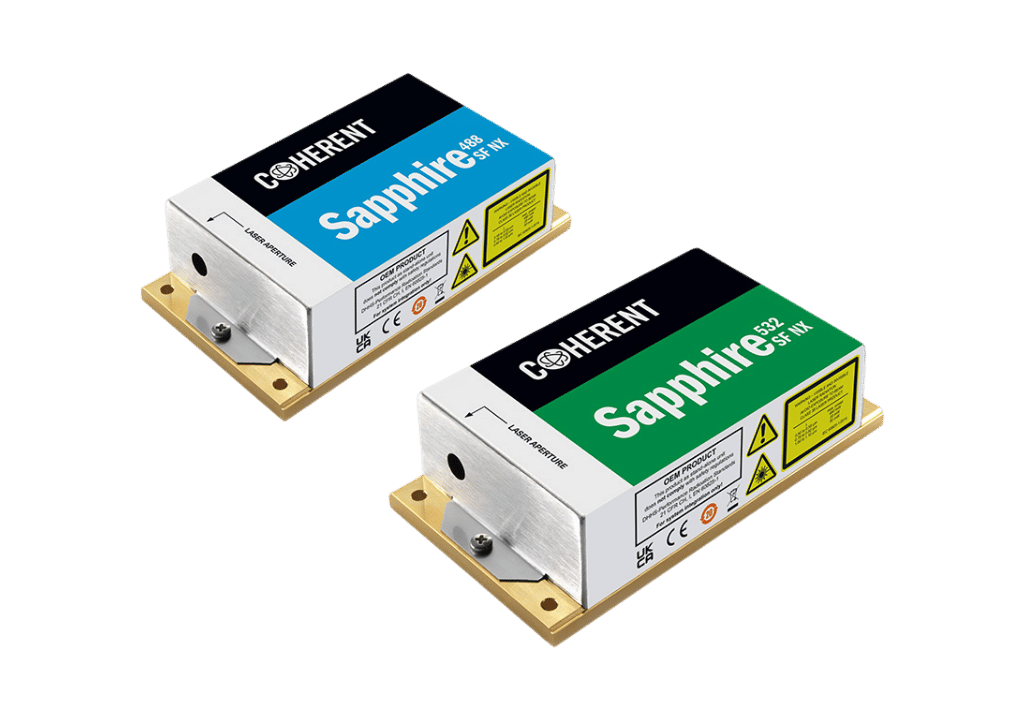

Sapphire SF NX	Linewidth <1.5 MHz	488, 532

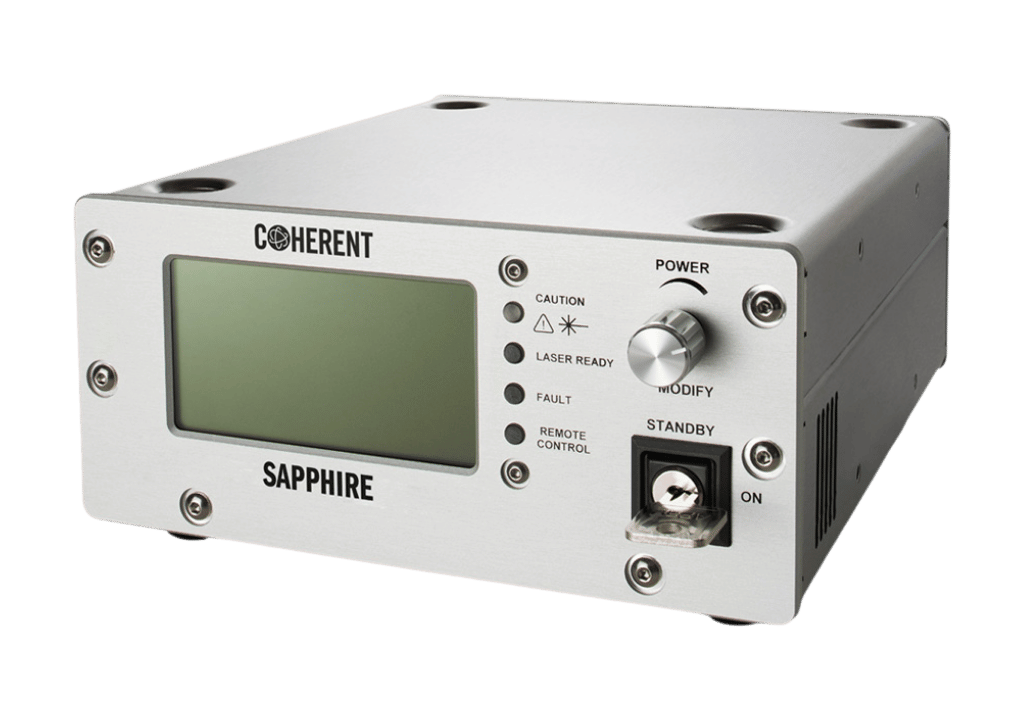

Sapphire CDRH Controller	Enables laser control without additional hardware and software	For all wavelengths available

Brochures & Datasheets :

Sapphire FP - Fiber Pigtailed Lasers from Deep Blue to Orange Datasheet (pdf / English)

Sapphire LP - CW Visible Lasers from Deep Blue to Orange Datasheet (pdf / English)

Sapphire LPX - Optically-Pumped Semiconductor Lasers (OPSL) Datasheet (pdf / English)

Sapphire CDRH Controller - Operate, Control, and Monitor Sapphire Laser Heads Datasheet (pdf / English)

Sapphire SF NX - CW Free Space and Fiber Pigtailed Single-Frequency Lasers Datasheet (pdf / English)
