OBIS CORE LS lasers combine compact design with high-performance beam quality. They are low-noise, versatile, and easy to integrate into your system. With seven carefully selected wavelengths spanning from 488 nm to 594 nm, these lasers are perfect for a wide range of life sciences applications. Their TEM₀₀ circular output ensures sharp focus—ideal for microscopes and precision instruments. Plus, the capability for analog and digital modulation up to 1 kHz streamlines instrument design and enhances flexibility. Whether you’re building benchtop flow cytometers or point-of-care analyzers, OBIS CORE LS lasers bring clarity, reliability, and simplicity to your research.
Designed for demanding life sciences environments, OBIS CORE LS lasers deliver consistent, high-quality beams in a small footprint.
OBIS CORE LS lasers support a new wave of life sciences instrumentation—smaller, smarter, more versatile. They’re the perfect tools to push your research forward, whether in high-throughput analysis or innovative point-of-care solutions.
Get high performance in a tiny package with a (>90 %) circular beam and TEM00 output mode. RMS noise (up to 20 MHz) is only ≤0.25 %. Pointing stability is <5 µrad/°C.

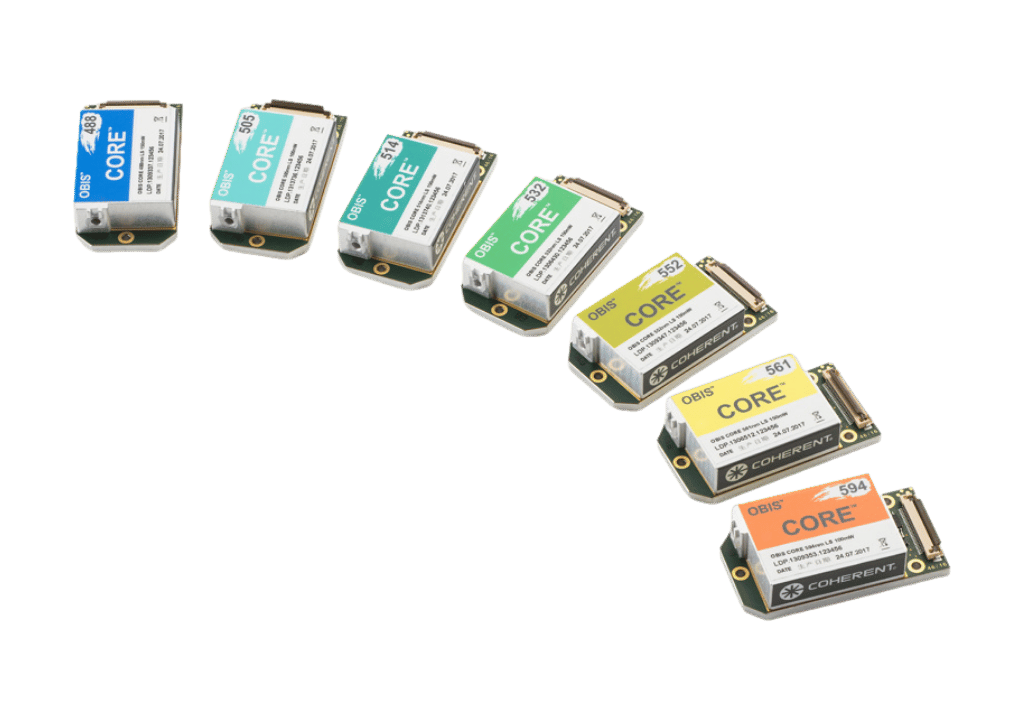

| Model Name | Wavelength (nm) | Available Power (mW) |
| OBIS CORE 488LS (NEW!) | 488 | 20 - 200 |
| OBIS CORE 505LS (NEW!) | 505 | 30 - 150 |
| OBIS CORE 514LS | 514 | 20 - 150 |
| OBIS CORE 532LS (NEW!) | 532 | 20 - 200 |
| OBIS CORE 552LS | 552 | 20 - 150 |
| OBIS CORE 561LS (NEW!) | 561 | 20 - 200 |
| OBIS CORE 594LS | 594 | 20 - 100 |
OBIS CORE LS - Next Generation Miniaturized OEM Laser Module Datasheet (pdf / English)
