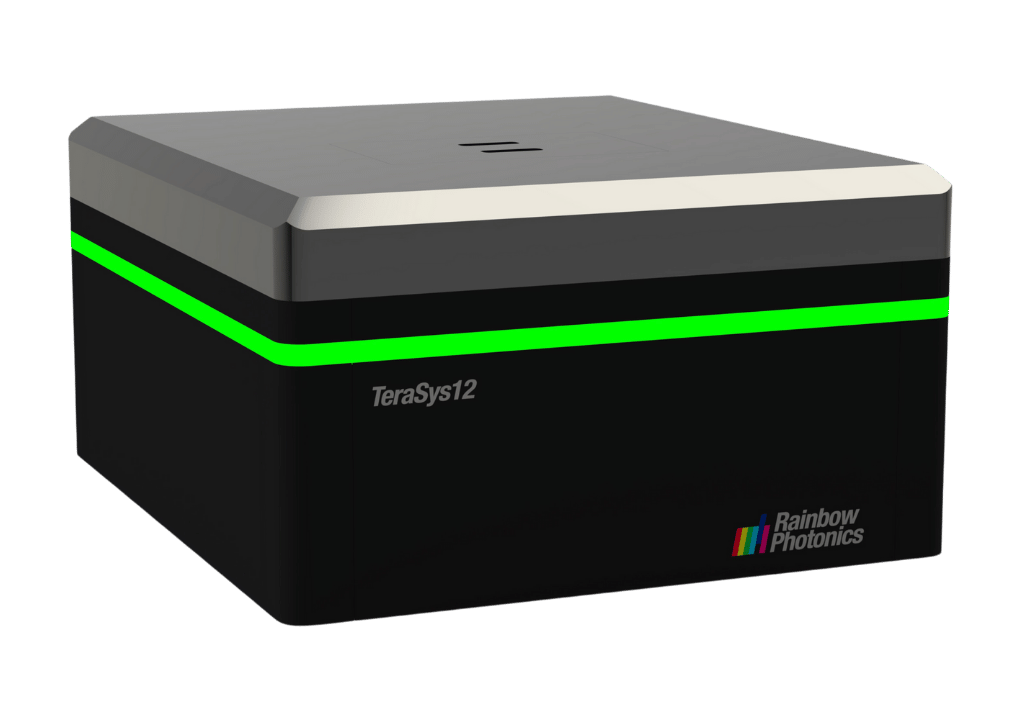

The TeraSys12® is a compact and powerful tool for real-time THz imaging and spectroscopy. It's designed for sensing, detection, analysis, and processing at terahertz frequencies. Using organic crystals, it provides access to THz frequencies up to 12 THz, which traditional antennas can't reach.
TeraSys12® offers advanced real-time THz imaging and spectroscopy in a small, easy-to-use package. It's perfect for a wide range of applications that require precise sensing, detection, and analysis. By utilizing organic crystals, it unlocks access to THz frequencies up to 12 THz, surpassing the capabilities of conventional antenna-based systems.
Also read the Application Notes PDF
Frequency domain spectrum measured with the TeraSys12® using DSTMS organic crystals as terahertz generator and detector in Transmission
| TeraSys12® Specifications | |
| Spectral range | 0.3 - 12 THz |
| Acquisition speed | 4 spectra per second |
| Scan range | >300 ps |
| Dynamic range | >60 dB (@ 4 THz) |
| Frequency resolution | < 10 GHz |
| Dimensions | 55 cm x 60 cm x 30 cm |
| Pump Source (high power ultrafast fiber laser) | |
| Pulse length | < 100 fs |
| Total average power | > 120 mW |
| Peak power | > 10 kW |
| Central wavelength | 1565 nm |
| Repetition rate | 100 MHz |
TeraSys12 Datasheet (pdf / English)
